Wire Bow Type Cable Stranding Machine Max 400RPM Main Body Speed

Product Categories
Dongguan HOOHA Electrical Machinery Company Limited
Contact Now

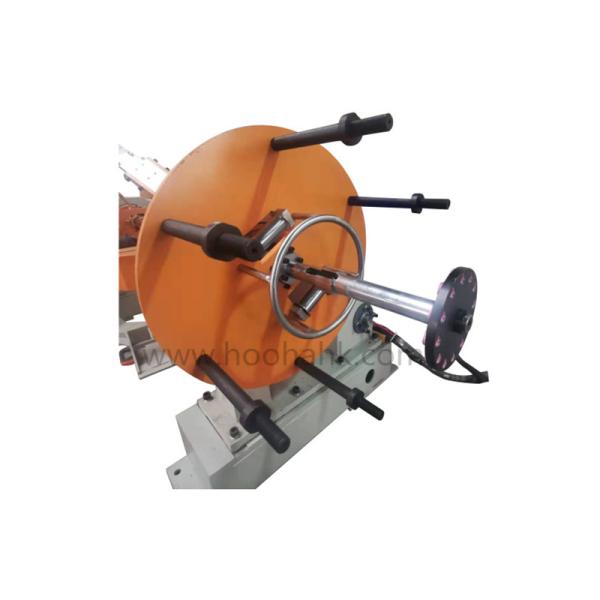

Wire Bow Type Cable Stranding Machine Max 400RPM Main Body Speed

Brand Name : HOOHA

Model Number : HH-630

Certification : CE,ISO,SGS

Place of Origin : Guangdong, China

MOQ : 1 set

Price : $262,269.00 per set

Payment Terms : L/C, T/T, MoneyGram, Western Union

Delivery Time : 60 days

Packaging Details : 1. film packing 2. wooden package 3.enclosed wooden package

Name : HH-630/6+1 bow type cable wire stranding machine

Main body speed : Max 400RPM

Technical Support : online Support

Use : stranding

Packing : Negotiable

color : sky blue

Transport Package : Plastic or Wooden

Contact Now

Wire And Cable Making Machine With Hot Sale 630/6+1 Bow Type Cable Wire Stranding Machine
Product Description
Wire Bow Type Cable Stranding Machine Max 400RPM Main Body Speed
NO
specifications
Number
1
φ630 shaftless magnetic powder tension release frame
1 unit
2
φ630 bow strand mainframe
6 heads
3
Φ450 three tray paper wrapping machine
1 set
4
PLC electrical control box
1 set
5
800 Twin-wheeled crane
1 set
6
Φ1000-2000 gantry address rail walking type
Receiving/rowing frame
1 set
Use: Suitable for twisted wire, power line, control line, special line wire core and copper wire stranding.
Specification
Model
HH630
Pay off (mm)
630
Line speed (M/min)
120
Conductor Section
(mm²)
1+3B
1.5-6
1+4B
1.5-6
1+5B
1.5-6
Max.Core (mm)
6
Rotor speed (rpm)
650
Motor Power(KW)
1+3B
35
1+4B
45
1+5B
55
Wire Bow Type Cable Stranding Machine Max 400RPM Main Body Speed
Wire Bow Type Cable Stranding Machine Max 400RPM Main Body Speed
Wire Bow Type Cable Stranding Machine Max 400RPM Main Body Speed

Company Profile

Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution.

Our vision: To make wire & cable manufacturing and using more humanized.

Our target: More professional customer service, struggle for employees' dreams. We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions

Wire Bow Type Cable Stranding Machine Max 400RPM Main Body Speed
Hu Machine Designer
20 years engineering design experience
Wire Bow Type Cable Stranding Machine Max 400RPM Main Body Speed
Bi Leading Engineer
Responsible for project engineering
Wire Bow Type Cable Stranding Machine Max 400RPM Main Body Speed
Chen Senior Engineer
Machine design for 30 years
Wire Bow Type Cable Stranding Machine Max 400RPM Main Body Speed
Wire Bow Type Cable Stranding Machine Max 400RPM Main Body Speed
Wire Bow Type Cable Stranding Machine Max 400RPM Main Body Speed
Professional and Strong Manufacture and Sales Team
Name
Education
Position
Mainly responsible for project
Specializing in project
working year
zanyang Xie
college
General Engineer
The total project design and planning
power cable machine
15 years
xiaohua Hu
college
Vice- general engineer
The total project design and planning
net cable,data cable machine
10years
Changhong Cheng
college
Engineer
Drawings and after-sales service
Teflon,Optical fiber cable machine
25 years
xiuwu Chen
college
General Engineer
The total project design and planning
copper drawing machine
15 years
lixin Yuan
college
Engineer
The project design and planning
coppwer wire making technical
16 years
zhenghai Qiu
college
cable engineer
After service
cable making and cable factory management servie
15 years
jinxin Liu
college
Marketing engineer
After service
electrical engineer
7 years
xingguo Tang
High school
Electrical engineer
After service
electrical engineer
10 years
changqiang Li
High school
Maintain engineer
After service
machina maintain and install service
10 years
haipin Li
University
Engineering director
Marketing and sales
project consulting
8 years
sen Yang
University
Engineering translator
Marketing and sales
project consulting
5 years

FAQ

Wire Bow Type Cable Stranding Machine Max 400RPM Main Body Speed
1. Who are we?
We are based in Guangdong, China, start from 2017
* HOOHA products sell to
Africa(17.00%)
Mid East(17.00%)
Southeast Asia(16.00%)
Eastern Asia(13.00%)
South Asia(10.00%)
South America(8.00%)
Eastern Europe(4.00%)
North America(3.00%)
Northern Europe(3.00%)
Southern Europe(3.00%)
Oceania(2.00%)
Western Europe(2.00%)
Central America(2.00%)
2.What can you buy from us?
Drawing Machine
Cabling Machine
Bunching Machine
Stranding Machine
Extrusion Machine
Wrapping and Packing machine
3. How can we guarantee quality?
Always a pre-production sample before mass production
Always final Inspection before shipment
4. What services can we provide?
Accepted Delivery Terms:
FCA,FOB,CFR,CIF,EXW,Express Delivery
Accepted Payment Currency:
USD,EUR,CNY
Accepted Payment Type:
T/T,L/C,Credit Card,PayPal,Western Union,Cash
Language Spoken:
English,Chinese,Cantonese
5. What are our advantages over other suppliers?
10 year R&D working experience with over sea service
5 big LV/MV cable project over 5 million working experience
After service team has 30 country working experience
HOOHA team focus on the cable making and use solution supply chain.
Wire Bow Type Cable Stranding Machine Max 400RPM Main Body Speed

Certificates and Exhibitions

Wire Bow Type Cable Stranding Machine Max 400RPM Main Body Speed
Shanghai
Wire Bow Type Cable Stranding Machine Max 400RPM Main Body Speed
Wire Bow Type Cable Stranding Machine Max 400RPM Main Body Speed

Russia
India
Wire Bow Type Cable Stranding Machine Max 400RPM Main Body Speed
Wire Bow Type Cable Stranding Machine Max 400RPM Main Body Speed

Customer Cases

Wire Bow Type Cable Stranding Machine Max 400RPM Main Body Speed
Wire Bow Type Cable Stranding Machine Max 400RPM Main Body Speed
Wire Bow Type Cable Stranding Machine Max 400RPM Main Body Speed
Wire Bow Type Cable Stranding Machine Max 400RPM Main Body Speed
